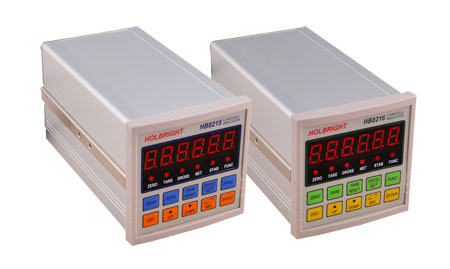

HOLBRIGHT HB-8215/8216
Discontinued
Designed for two types of AC and DC power operation which simple operation in common weighing application such as using in bench, platform, floor, truck scales which interface with P.C, P.L.C or independent application.
- Brand: HOLBRIGHT - Taiwan
Description
- HB-8215/8216A is designed for AC power operation
- HB-8215/8216B is designed for 12VDC power operation.
- The indicator is designed for industrial field application.
- Industrial compact size design.
- High speed A/D conversion rate 128 times/sec.
- High resolution 24 bits over (16,000,000) internal counts
- Dual RS-232C communication ports are built in standard type HB-8215A/B.
- One (1) full duplex RS-232 communication Interface and one (1)analog O/P are built in standard type HB-8216A/B.
- Power for drive 8(350Ω) load cells or 16(700Ω) load cells
- Easy to use front keyboard for digital configuration and calibration zero and span.
- High accuracy D/A converter: 14 bits(1/16,000) resolution, 4-20mA and 0-10VDC analog O/P.
- Easy to interface with P.C, P.L.C for batching plant or weighing control system application.
