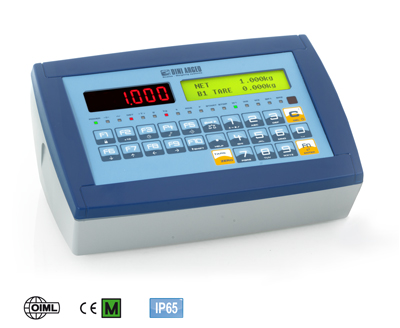

DINI ARGEO 3590EXP

Description

High performance digital weight indicator, with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, graphic display and port for connection to barcode/badge reader. The wide range of connectable accessories and printers guarantees the maximum interfaceability and versatility. CE-M approvable (OIML R-76 / EN 45501).

• 25-key alphanumerical waterproof keyboard.
• Highly efficient red led display with 6 digits 15mm high.
• Backlit LCD graphic 25x100mm display.
• Synoptic bar graph with 16 bright LEDs showing the active functions.
• Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments (IP40 on version with thermal printer).
• Dimensions: 278x125x186 mm.
• Suitable for bench, column or wall installation.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Functions available with DINITOOLS utility
  - Configuration, calibration, data entry and print formatting.
  - Recording and filing of all the information on PC.
  - Complete retrieval of the data saved for quick substitution.
  - Instrument calibration with numeric values.
• Selection of the programme language directly in the set-up.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version, 1 in the E-AF09 version) for reading of the weight.
• Management of 16 analog load cells of 350 Ohm (45 cells at 1000 Ohm);
  NOTE: for the management of digital load cells for weigh bridges, see the range of touchscreen indicators.
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
• Power supply:
  3590E version: 12 Vdc via external power supply.
  All other versions: 110-240 Vac and built-in rechargeable battery.
• Connectable to printers and labellers with the command drivers.
• Available in "P" version, fitted with attached printer as standard.
