DINI ARGEO DGTP

Description

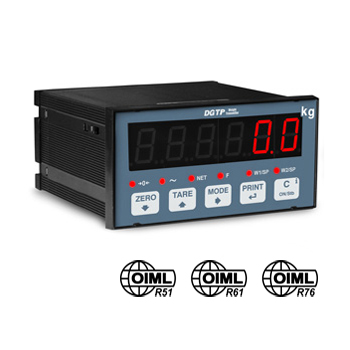

Multipurpose weight transmitter for panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Wide range of available interfaces.

• Easy to use 5-key waterproof keyboard.
• Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
• Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 140mm (lxhxw).
• A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
• Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
• Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
• Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
• Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
• Up to 8 signal linearization points with DINITOOLS (3 from keypad).
• Fitted real time clock.
• From 12 Vdc to 24 Vdc power supply.

 Dini Argeo DGTP.pdf
